Description:
1. Conduction oil heating brewing system that closely mimics a large-scale steam-powered system
2. Heated oil is circulated around jacketed tanks to heat with a large surface area. All the benefits of steam without the complexity of a steam generator
3. Lower electrical requirement for installation compared to electric brewhouses with immersion elements.
4. Insulated vessels for high heating efficiency
5. Compact brewing system with no need for additional electrical controllers, components, or extensive wiring. All pumps, piping, and fittings included
6. No heating elements in direct contact with wort. Zero risk of scorching and easy to clean
7. 3 Vessel systems are ideal for breweries that intend to use this unit as their primary brewing system
Compared to the traditional steam heating brewhouse, the thermal oil heating brewhouse avoids the installation of a dangerous and high-maintenance steam boiler. Steam offers more surface area than gas fired, but it requires a generator to create steam, collect it, and reheat it again.
Compared to our electric brewhouses, the oil heated brewhouse systems have several advantages starting with their lower electrical requirements. And since there are no heating elements in direct contact with your wort, there is zero risk of scorching and cleaning is much easier after each batch.

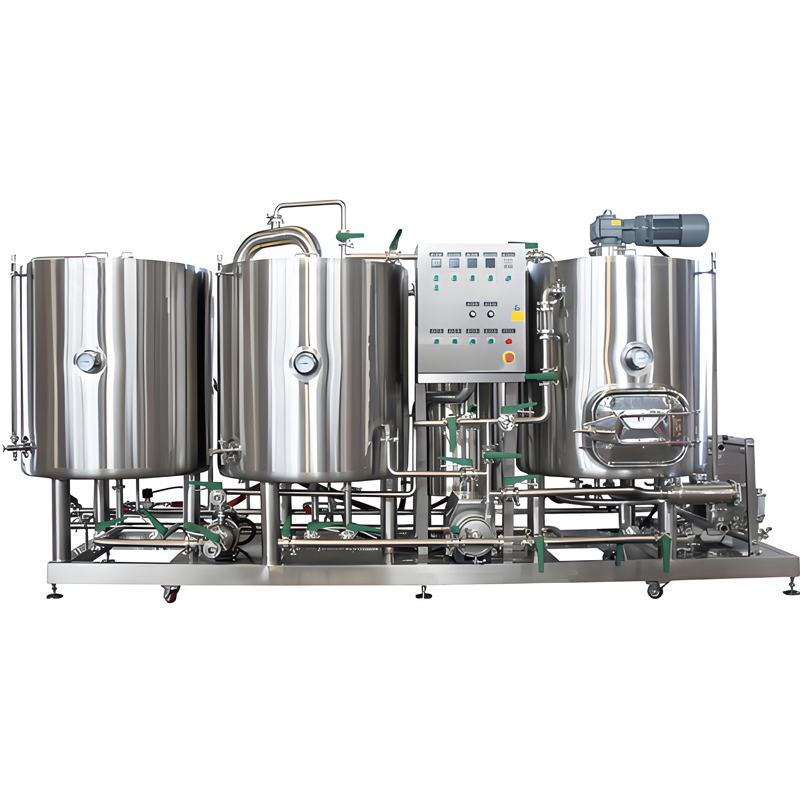

Conduction oil heating brewhouse features:
1. 3-Vessel System with dedicated HLT, Mash Tun, and Boil Kettle
2. Compact design and easy installation
3. Built in wort pump
4. Built in HLT pump
5. Built in 2-stage heat exchanger
6. Hard piped distribution manifold
7. Built-in control panel
8. PID controls for kettle temperatures and oil temperature
9. Tangential kettle return for whirlpool
10. Built-in CIP
11. Insulated tanks for heat retention and heating efficiency
12. Boil kettle features steam collector which eliminates the need to install a flue in your brewery
13. Hot oil vessel can operate at higher temperatures, that means 25% higher heating efficiency:
Oil temperature set at 302°F (150℃) [available up to 572°F (300℃)]
from 82°F to 140°F (28°C to 60℃), heat-up time: 20 min
from 140°F to 176°F (60°C to 80℃), heat-up time: 20 min
from 176°F to 212°F (80°C to 100℃), heat-up time: 30 min
14. Higher heating efficiency compared to steam heating
15. Simultaneous heating of HLT, mash tun and kettle to save time
