Choosing the wrong tank size can create costly installation problems. A 1000L Wine Fermentation Tank must fit your production needs and available space. Its dimensions depend on tank design, working capacity, and cooling systems. This guide explains tank height, diameter, volume calculations, and installation requirements. Learn what to check before ordering.
The dimensions of a 1000L Wine Fermentation Tank vary by design. Its diameter and height depend on the internal vessel shape, bottom geometry, and required working volume. For preliminary planning, a reference example might use a diameter of approximately 930 mm and a total height of around 2,100 mm. These figures are illustrative only and must be verified against the selected model's technical drawing. They are not universal industry standards.
A taller, narrower tank occupies less floor space but requires greater overhead clearance. A wider, shorter tank may fit better in rooms with limited ceiling height. However, its larger footprint can reduce available space for pumps, pipes, and operator movement. Buyers should also confirm whether the stated height includes the support legs, top fittings, and discharge valve. These details can significantly affect the actual installation envelope.
Tank shape directly affects its height, footprint, and internal volume. A cylindrical vessel with a flat bottom generally has a simpler vertical profile. A conical-bottom vessel adds height below the main cylindrical body. Its cone can support sediment collection and help discharge operations, but the outlet also needs sufficient clearance.
Domed or dished heads may change the vessel's total height and internal capacity. The same nominal volume can therefore produce different external dimensions across models. When comparing suppliers, buyers should examine the complete vessel geometry rather than comparing diameter alone. The technical drawing should show the cylindrical section, bottom profile, top head, support structure, and major connections.
The internal vessel diameter does not necessarily match the external diameter. Cooling jackets add material around the tank wall. Insulation and protective cladding may increase the overall envelope further. External pipes, valves, and fittings can also extend beyond the main tank body.
These differences matter when planning closely spaced equipment. A tank may fit on paper but interfere with adjacent vessels once its cooling connections are installed. Buyers should request both internal dimensions and maximum external dimensions. They should also confirm the location of cooling inlets, outlets, and other projecting components.
Note: Use the manufacturer's dimensioned drawing for final layout planning. Do not treat estimated dimensions as confirmed product specifications.
Published product descriptions often provide capacity and general configuration details. They may not show every dimension required for installation. Before ordering, ask the manufacturer for a drawing specific to the selected model. Confirm its total height, maximum diameter, support dimensions, outlet position, and connection locations.

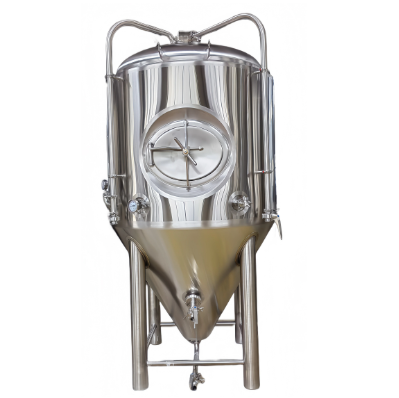

For reference, review the 1000L Fermentation Tank from CBET Brew. Use the product information as a starting point, then request any missing technical measurements. This approach helps buyers compare equipment accurately and avoid costly changes during installation.
Cylindrical tanks are common in beverage processing because their geometry supports efficient use of internal volume. Their footprint mainly depends on the vessel diameter. Their height depends on the cylindrical section and the shape of the top and bottom. A flat-bottom design may reduce overall height, depending on its support arrangement and head configuration.
A sloped bottom changes the internal volume distribution and may help liquid move toward a discharge point. However, its benefits depend on the actual slope, outlet location, and process requirements. Buyers should not assume that all sloped-bottom tanks have the same usable capacity. The internal drawing should clarify how the bottom contributes to the rated volume.
A conical-bottom tank includes a tapered section beneath its cylindrical body. This configuration can help collect sediment and support controlled discharge. It may be useful when the production process requires separation of settled material from the liquid. However, the cone adds vertical height and may increase the space required beneath the vessel.
The outlet valve must remain accessible for operation and cleaning. Buyers should also check whether the tank needs additional clearance for hoses, containers, or transfer equipment. If the winery has a low ceiling, the extra height may become a limiting factor. A conical design should therefore be evaluated against both process needs and available space.
Vertical tanks usually reduce the floor area needed for a given capacity. They can be suitable for wineries that need to preserve space for other production equipment. However, tall vessels may be difficult to install in rooms with low ceilings. Maintenance access and overhead pipework can also limit their placement.
Compact tanks distribute volume across a wider footprint. They may simplify access in certain facilities, but they occupy more floor space. The best configuration depends on the room dimensions, production workflow, and available service access. Buyers should compare the total external envelope rather than the vessel body alone.
Tip: Share the winery's floor plan and ceiling height with the supplier before selecting a tank configuration.
Nominal capacity refers to the tank's stated volume under the manufacturer's definition. Working capacity refers to the volume intended for normal operation. These values may differ because the tank needs sufficient space for the process and must operate within its design limits.
For example, a vessel rated at 1,000 liters may not be intended to hold 1,000 liters of actively fermenting liquid under every operating condition. The correct fill level depends on the vessel design and the material being processed. Buyers should ask whether the advertised capacity represents total internal volume or recommended working volume.
This distinction is important when calculating batch sizes. If a winery needs a specific volume of finished wine, it should account for the required operating space and expected process losses. The tank's rated capacity alone cannot confirm that it will meet the production target.
Headspace is the unfilled space above the liquid. Its required amount depends on the fermentation process, the material inside the tank, and the operating method. Active fermentation can produce foam, gas, and changes in liquid behavior. Grape must containing solids may require different operating allowances from clarified liquid.
The appropriate fill level should follow the tank manufacturer's guidance and the winery's process requirements. Excessive filling can create operational problems if the liquid expands or foam reaches the upper fittings. Too much unused space may also reduce the effective production capacity. Buyers should confirm the recommended fill range for their intended application.
Request written confirmation of the tank's nominal capacity, recommended working volume, and maximum permitted fill level. Ask whether the stated volume includes the conical section or other internal geometry. If the tank will process grape must, clarify whether the recommended operating volume accounts for solids and active fermentation.
These details help buyers compare models on a consistent basis. They also support realistic production planning. If the facility needs a specific batch volume, the supplier should confirm that the proposed configuration can accommodate it safely.
Note: Never calculate the usable batch volume from the product name alone. Confirm it against the manufacturer's specifications.
A cylindrical tank's volume depends on its internal diameter and cylindrical height. The basic formula is:
Cylinder volume = π × radius² × height
For metric calculations, use meters for the radius and height. One cubic meter equals 1,000 liters. Therefore, a volume of 1,000 liters is equivalent to one cubic meter.
For a simplified example, assume a cylindrical section has an internal diameter of 1 meter and a straight-side height of approximately 1.27 meters. Its cylindrical volume would be about one cubic meter. This is only a mathematical illustration. It does not represent the complete dimensions of a real fermentation tank because the actual vessel may include a conical bottom, curved heads, and required headspace.
A conical bottom contributes additional internal volume. Its volume can be estimated using:
Cone volume = ⅓ × π × radius² × cone height
The cylinder and cone volumes can be added when calculating a simplified vessel with these two sections. However, the final result must account for the actual shape of the top head and bottom structure. Internal fittings or other design features may also affect usable volume.
For preliminary sizing, these formulas help buyers understand the relationship between diameter and height. They are not substitutes for engineering drawings or manufacturer calculations. The actual vessel may have curved transitions and other geometries that require more detailed calculations.
Internal dimensions determine the vessel's theoretical liquid volume. External dimensions determine whether the equipment fits the installation space. The external diameter may include the vessel wall, cooling jacket, insulation, and protective cladding. Total height may include support legs, top fittings, and bottom valves.
Buyers should request separate measurements for the internal vessel and complete external envelope. They should also check the maximum width created by valves and cooling connections. These measurements are especially important when the tank must pass through a narrow doorway or fit beside existing equipment.
Use volume calculations to compare design options, not to approve a final purchase. The manufacturer should provide a dimensioned drawing for the selected configuration. This drawing should identify the main dimensions, connection positions, support points, and relevant installation requirements.
If the calculated volume differs from the supplier's stated capacity, ask for clarification before proceeding. The discrepancy may result from curved heads, a conical section, or a different capacity definition. Confirming these details early helps reduce design errors and installation delays.
Tip: Keep all dimensions in one unit system when checking calculations. Convert millimeters to meters before using the volume formulas.
The tank must fit through the entire delivery route, not just the final installation space. Measure door openings, corridor widths, turns, and any height restrictions. Consider the tank's maximum external diameter and total height during transport. Packaging, lifting equipment, and handling arrangements may also affect the required clearance.
A vessel that fits inside the production room may still be impossible to move through the entrance. Suppliers should confirm the shipping dimensions and advise whether the tank can be transported upright or requires another approved handling method. Buyers should identify potential obstacles before production and delivery.
The tank needs enough space for routine inspection, cleaning, and maintenance. Operators may need access to the manway, valves, sampling points, and connections. Cleaning equipment must also be compatible with the vessel's internal design and approved operating conditions.
Clearance requirements depend on the tank configuration and the winery's cleaning procedures. Avoid placing valves against walls or locating connections where operators cannot reach them safely. Confirm the recommended service clearance with the manufacturer and include it in the facility layout.
The available ceiling height must accommodate the tank's highest point. Consider top fittings, vent arrangements, overhead pipes, lighting, and any lifting equipment needed during installation or maintenance. The space required for service work may exceed the tank's installed height.
If the tank will be positioned beneath a platform or pipe rack, measure the actual clearance at the installation point. Confirm how the vessel will be lifted and positioned. These checks help prevent conflicts with existing building services and reduce the risk of costly modifications.
The tank footprint is only one part of the installation area. Pumps, hoses, transfer pipes, drains, and operator access also require space. Cooling connections may need room for pipe bends and maintenance. The layout should allow operators to reach valves without blocking nearby equipment.
Consider the complete process route from filling to discharge. Check whether hoses can connect without sharp bends or crossing busy walkways. A well-planned layout supports safer operation and easier maintenance.
Tip: Prepare a scaled floor plan showing the tank, adjacent equipment, piping routes, and service clearances before confirming the order.
Smaller tanks may suit wineries that produce limited batches, test different varieties, or separate lots during fermentation. They can offer more flexibility when production volumes change. However, several smaller vessels may require more connections, cleaning work, and floor space in total.
A 1,000-liter vessel may simplify operations when batch sizes match its working capacity. The right choice depends on production schedules, fermentation management, and available space. Buyers should compare the number of vessels required, not just the capacity of each individual tank.
Larger tanks can reduce the number of vessels needed for high-volume production. They may also change the requirements for handling, cooling, cleaning, and installation. Their greater diameter or height can create additional challenges in an existing winery.
A 1,000-liter tank may be more practical for smaller batches or facilities with limited access. Larger vessels may be suitable when production volume and building infrastructure support them. Buyers should consider expected demand, batch separation needs, and room for future expansion.
Tank capacity depends on three-dimensional geometry. Increasing the diameter affects cross-sectional area, while increasing height affects volume differently. Bottom and top shapes also influence the final result. Therefore, doubling the rated capacity does not necessarily double the tank's height or diameter.
Cooling jackets, insulation, support legs, and fittings can further change the external dimensions. Two tanks with the same rated capacity may also have different proportions. Compare actual technical drawings when evaluating alternative sizes.
Note: When comparing capacities, evaluate working volume, external dimensions, and installation requirements together.
Request a dimensioned drawing showing the internal vessel, external envelope, support structure, and connection positions. Confirm the total height, maximum diameter, leg dimensions, and outlet clearance. Ask the supplier to state nominal capacity and recommended working volume separately.
If the tank must fit an existing room, provide the available floor area, doorway dimensions, and ceiling height. This allows the supplier to check the proposed configuration against the installation constraints. Written confirmation is preferable to relying on general product photographs or short descriptions.
Confirm the stainless steel grade and internal surface finish specified for the intended winemaking application. The material should be suitable for the product, cleaning chemicals, and operating conditions. If temperature control is required, ask about the cooling jacket design and compatible cooling system.
The supplier should also explain any insulation, external cladding, or protective finish included in the configuration. These features can affect both equipment performance and external dimensions. Confirm the relevant specifications in writing before approving production.
Review the locations and sizes of the filling inlet, discharge outlet, sampling points, vents, and other required connections. Confirm that the valves suit the planned transfer process. Check whether the tank supports the intended cleaning method and whether all internal surfaces can be accessed or cleaned effectively.
Connection positions should match the winery's existing piping and operating workflow. Changes made after manufacturing may increase costs or delay installation. Confirming these details early helps the tank integrate into the wider production system.
A supplier can assess the tank against the available space when provided with accurate site information. Share the floor plan, ceiling height, doorway measurements, pipe routes, and required operating clearances. Identify any restrictions that could affect transport or maintenance access.
For equipment selection, review CBET Brew's 1000L Fermentation Tank and discuss the required configuration with its team. If you are also comparing fermentation equipment for other beverage applications, the 1000L Kombucha Fermentation Tank provides a related product reference. Confirm that each model's specifications match your actual process before making a final decision.
Choosing the right 1000L Wine Fermentation Tank requires careful sizing and installation planning. Verify tank dimensions, working capacity, cooling systems, and maintenance clearance before ordering.
CBET Brew offers fermentation tanks designed for practical production needs. Its equipment options help wineries plan efficient layouts and reliable fermentation operations.
A: Dimensions vary by design. Confirm the tank diameter, total height, and external fittings.
A: Working capacity depends on headspace and the manufacturer's recommended fill level.
A: Use internal diameter and height, accounting for the bottom shape and total volume.
A: Allow clearance for doorways, ceiling height, cleaning, valves, and piping.
A: Conical bottoms increase height, while wider designs require more floor space.
