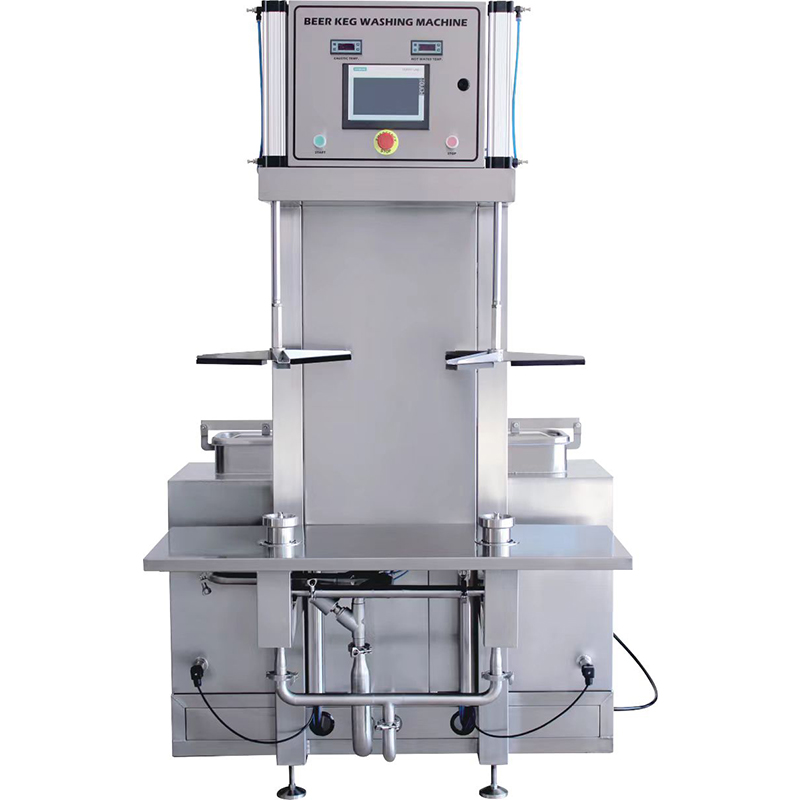

The ZPET Semi-Automatic Beer Keg Double Heads Washing Machine is a professional-grade cleaning and filling system designed for small to medium-sized breweries. Built with advanced technology, it incorporates high-quality components same as those used in large-scale production lines. The machine features two heads – one for washing and one for filling – and offers a range of customizable cleaning programs. With the ability to wash and fill up to 40-60kegs per hour, depending on keg size and cycle time, this machine ensures consistent and efficient operation. Easy to install and connect, it provides hygienic, reliable cleaning.
| (Size:W*L*H) | 1.20X1.51X2.05M | |||
| (Weight) | 240KG | |||
| （with slide or not） |  No | Yes | ||
| Packing Size （L*W*H) | 1.65X1.41X2.28M | |||
| (Gross Weight) | 400KG | |||
| （ Capacity） | 40-60pcs/h | |||
| (Power) | According to user local power (3 Phases 380V 50Hz) | |||
| (Power port) | 3P+N+G | |||
| (Heater way ） | （Steam Coiler） | Electrical Heater） | ||
| (Power consumption) | 2.0KW | 14KW | ||
| (Main Material) | SUS304 | |||
| (Water tank material and volume) | SUS304 Single tank / Volume=100L （2pcs） | |||
| （Motor type and brand) | SUS304 Pump Head | |||
| (Temperature prode) | NTC | |||
| Temperature control mode | STC-200 | |||
| (Connect type) | water inlet and drain outlet | 1.5" Tri-clamp | Steam inlet | DIN male fitting |
| (Spear type) | A | S | D | G |
| ( Keg type) | EURO DIN AMERICAN 20L-60Lkeg | |||
| （Washing part inlet with pressure detection or not） | Yes | No | | |
| （Washing part outlet with the residual liquid detection or not) | Yes | No | | |
| Washing working procedure） | Lock down → air purge/drain off → hot water washing→ air purge/drain off → caustic washing → air purge/to caustic tank → hot water 1 washing → air purge/drain off → hot water 2 washing →steam drain hot water→steam sterilized → steam keep pressure sterilized→CO2 purge/drain off→CO2 fill | |||
Adjustable Parameters: Operators can fine-tune all time-based washing parameters without pausing or stopping the machine's ongoing operation, enhancing workflow efficiency.
CO2 Pressurization: The system incorporates a CO2 pressurization feature, which aids in preparing kegs for filling or storage after the cleaning cycle is complete.
Precise Water Temperature Control: A specialized water temperature control unit, designed for use with caustic solutions, ensures a more thorough and effective cleaning process for kegs.
Powerful Cleaning Pump: The machine is equipped with a high-power water pump, facilitating a comprehensive and deep cleaning of keg interiors, removing all residues.
Customizable Programs: Users have the flexibility to set and save personalized cleaning programs, simplifying operation and adapting the wash cycle to various keg conditions.
Reliable Steam Sterilization: It utilizes steam for sanitization, providing a safe and highly effective method for sterilizing stainless steel kegs after washing.
Robust Performance: ZPET's high-quality keg washers are engineered to maintain excellent performance, even when operating under demanding conditions and continuous usage.
Customizable Solutions: The machines offer extensive customization options, including variations in shape, size, material, and even the integration of a client's logo, tailored to specific needs.
Corrosion Resistance: The entire structure is constructed from 304 stainless steel, ensuring the machine operates effectively and reliably in wet environments without succumbing to corrosion.
Reliable Operation: ZPET machines are meticulously designed to provide smooth, trouble-free operation, minimizing downtime and reducing operational concerns for users.
Original Parts Availability: Clients can readily obtain original spare parts directly from ZPET, guaranteeing compatibility and sustained machine performance over time.
Comprehensive Warranty: ZPET promises 10 years warranty for the beer equipment., providing assurance to customers.
Q: How does the dual-head system benefit my brewery operations?
A: The dual independent washing stations allow for simultaneous cleaning of two kegs, significantly increasing throughput and overall efficiency in your keg washing process, optimizing labor and time.
Q: Can I customize the washing cycles for different cleaning needs?
A: Yes, the machine features a programmable interface, enabling users to freely set and save custom washing programs. This allows for precise control over parameters like washing time and temperature for various cleaning requirements.
Q: Is the machine easy to install and operate?
A: Yes, the ZPET washing machine is designed for ease of installation and user-friendly operation. Its intuitive controls and robust build ensure a smooth, headache-free experience for operators.
Q: How long will the full set of equipment be guaranteed?
A: ZPET promises a 10-year warranty for the beer equipment.
Q: Do you supply after-sales service?
A: Yes, ZPET will offer turnkey brewing service from brewing equipment design, production, installation, and after-sales service.
