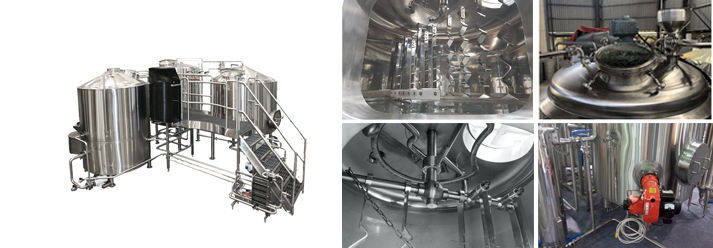

Three-Vessel Brewhouse

CBET’s 3-Vessel Brewhouses are designed to deliver best-in-class brewing quality, efficiency, yield and simplicity for today’s rapidly growing craft breweries. CBET’s standard 3-Vessel brewhouse design consists of an individual Mash Tun and Lauter Tun with an integrated Brew Kettle & Whirlpool. Utilizing CBET’s best-in-class automation & controls to maximize efficiency and versatility, these 3-Vessel systems are the perfect solution to meet your brewing needs.

CBET’s 3-Vessel Brewhouse systems are available with several options to help deliver brewing efficiency, control & automation, and overall flexibility.

Typical size range from 500L(5BBL) to 5000L(50BBL)

(custom sizing & configuration available)

Standard 3-Vessel Brewhouse configuration

High Gravity Mash Tun

Low pressure steam jacket with PLC controlled temperature control for optimum profile capability

VFD speed and function controlled, custom engineering mash mixer for low sheer, efficient mash mixing designed to handle high gravity brews

Integrated, VFD speed and function controlled rake system designed to cut and lift grain bed to maximize extract yield, reduce lautering time and automate grain out processes

Custom designed wedge wire false bottom designed to maximize yield and minimize grain pass-through

Equip with auto grain out processing device

Multipoint wort collection design for uniform bed formation and high yield extract collection

Brew Kettle / Whirlpool Vessel with integrated steam jacket and temperature control

Custom designed vessel optimized for rapid boiling and efficient and high yield trub separation

Low pressure steam jacket with PLC controlled temperature control for efficient and vigorous boil control

Tangential inlet for proper centrifugal force for efficient trub separation

Semi-Automated Controls with Siemens PLC

CE or UL Electrical System including motor and pump

Sanitary Pumps and Agitator with VFD Controls

Stainless Steel Plate Two Stage Heat Exchanger with integrated temperature display

Manual Sanitary Butterfly Valves

Ergonomic and efficient 304 stainless steel work plateform with easy access to all vessels and brewing functions

Options

Manual Brewhouse

Electric,gas directly heating for brewhouse

External Calandria for quick and efficient wort heating, enabling rapid and vigorous boiling in the brew kettle

Hot Liquor Tank – Designed and Sized for Double Brew efficiency

Cold Liquor Tank – Fully insulated and integrated

Mash / Lauter Tun Rakes

Air Actuated Automatic Butterfly Valves

Hop Gun/Wort Grant/Grist Hydrator/Hop Back Tank and so on
