BREWERY EQUIPMENTS

LOCATION ：HOME - BREWERY EQUIPMENTS - Brewhouse

  • Gas directly fire heating brewhouse

    CBET’S gas directly fire heating brewhouse can be use the size range from 200L(2BBL) to 5000L(50BBL) for this capacity brewhouse.

    This kinds of brewhouse was widely used in USA,CANADA.

    and it can also realized multi step mashing and decoction mashing.



    Standard Electric Brewhouse configuration

    Mash / Lauter Tun with side grain out access

    Brew Kettle / Whirlpool Vessel with gas fire heating and temperature control

    Semi-Automated Controls with Siemens PLC

    CE or UL Electrical System including motor and pump

    Sanitary Pumps and Agitator with VFD Controls

    Stainless Steel Plate Two Stage Heat Exchanger with integrated temperature display

    Manual Sanitary Butterfly Valves

    Ergonomic and efficient 304 stainless steel work plateform with easy access to all vessels and brewing functions

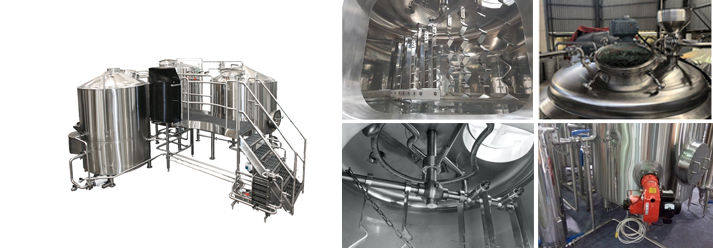

     20180813154950684.jpg@!w800

    Options

    Manual Brewhouse

    Electric,steam for brewhouse

    Hot Liquor Tank – Designed and Sized for Double Brew efficiency

    Cold Liquor Tank – Fully insulated and integrated

    Mash / Lauter Tun Rakes

    Air Actuated Automatic Butterfly Valves

    Hop Gun/Wort Grant/Grist Hydrator/Hop Back Tank and so on

  • High quality Spare Parts For Brewhouse

    20180813155021375.jpg@!w800

    ★Tri-Clamp Type PT100 for all the tank transmit temperature signal .more precise.

    ★Equip with hop filter before wort into heater exchanger

    ★Laser cutting sieve plate with the gap 0.7mm and thickness is 4mm

    ★Rake knife/Agitator motor use Siemens brand,Wort pump and water pump motor use ABB brand, for stable using.

    20180813155028113.jpg@!w800

    ★Two stage and six flows Hang type heater exchanger, stainless steel type.

    ★Side mounted grain outdoor with grain chute

    ★5L Glass type wort grant to make sure wort more clear during lautering. ( 》500L)

    ★Wort gravity testing plateform

    20180813155036583.jpg@!w800

    ★Lauter tank with the function of grist remove auto device.( 》1000L)

    ★New type stainless steel butterfly valve for all tank,several level to adjust, easy to control the flow.

    ★Tempered Glass top manway for brewhouse.LED Sight glass on the top. ( 》500L)

    ★Hop back tank with filter insider
